Motion Lab Tuned 94 Supra 515whp/440wtq on 22psi!

[MotionLabTuning]

Shop: Motion Lab Tuning
Dyno Type: Dyno Dynamics
Boost: 22psi
Target AFR: 11:1
SAE Corrections: Default Corrections
Peak HP at RPM: 515whp @ 7300 RPMs
Peak Torque at RPM: 440wtq @ 4800 RPMs
Transmission: Auto
Gear: 2nd
Fuel: 93OCT pump
Engine Management: AEM Series1 EMS
Engine/Power Modifications:
- HKS 264 cams
- GReddy T78 single turbo kit
- 800cc injectors
- Automatic transmission
- 4" Intercooler
- Custom intercooler piping fabricated by Motion Lab Tuning

This is a 94 Auto Supra that we just finished fabricating some custom intercooler piping for. Car was making power easy but he needed to rework how his wastegate and boost controller was configured. We were gaining a good 10-15whp per pound of boost but we couldn't take it over 22PSI.

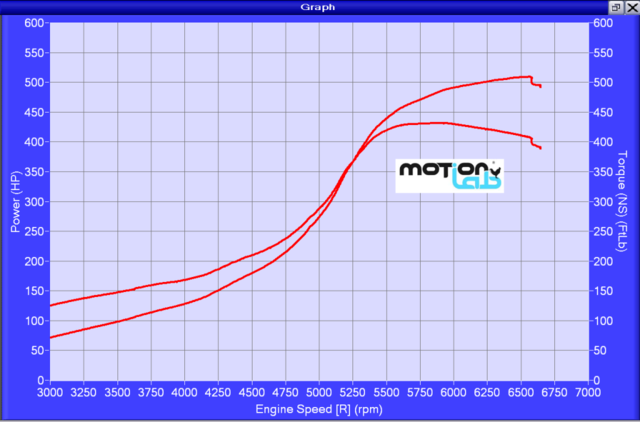

Final HP/TQ:


Final Boost + AFR:


Follow whats going on at the shop on our Facebook page Motion Lab Tuning - Automotive - Charlotte, NC | Facebook

Thanks for looking!
Alex Goodwin
AlexG@motionlabtuning.com

[naga77777]

Good stuff

got any pics of the car?

[MotionLabTuning]

Naga,

The car has been getting rebuilt since last March. We recieved it with no hood bumper and unpainted fenders. I will post a pic or two of the engine bay but unfortunately this supra wasn't quite ready for a photoshoot haha.


Thanks,
Alex Goodwin
AlexG@motionlabtuning.com

[MotionLabTuning]

He came by for us to take care of a few small things and I snapped some pics:





Thanks,
Alex Goodwin
AlexG@motionlabtuning.com

[rtrdpenguin]

How much experience do you have tuning 2JZs on AEM v1?

Thanks,
Marco

[Sburke]

22psi.........

[MotionLabTuning]

How much experience do you have tuning 2JZs on AEM v1?

Thanks,
Marco

Marco,

This particular car was tuned out on the series1. Todd has many years of experience on the AEM Engine management systems. We are actually working with AEM electronics to develop their EMS-4 into a plug-n-play option for the 98-01 subaru impreza 2.5rs.

22psi.........

We needed to re-route the wastegate vacuum lines so it could hold more boost. We were not able to pull any more out of it in its current configuration.


Thanks,
Alex Goodwin
